Gantry Crane for Engineering

Gantry Crane for Engineering Lifting Capacity: 5~800t  ( Customized )
Span: 7.5m~35m ( Customized ) Lifting Height:6~100m ( Customized )
Working Class: A5,A6
Double Girder Gantry Crane Supplier With Competitive Price design and produced according to Chinese national crane design standard GB/T 14406 or International crane design standard. Mainly is made up of bridge beam, trolley, crane traveling mechanism system and electric system. All working procedures are finished in the operating cabinet room. Applied to the open warehouse environment or rail along for general handling and lifting work. Also can be equipped with many special lifting device for special lifting task. Prohibited for lifting under high temperature situation, flammable, explosive, corrosion, overloading, dusty and other dangerous environment

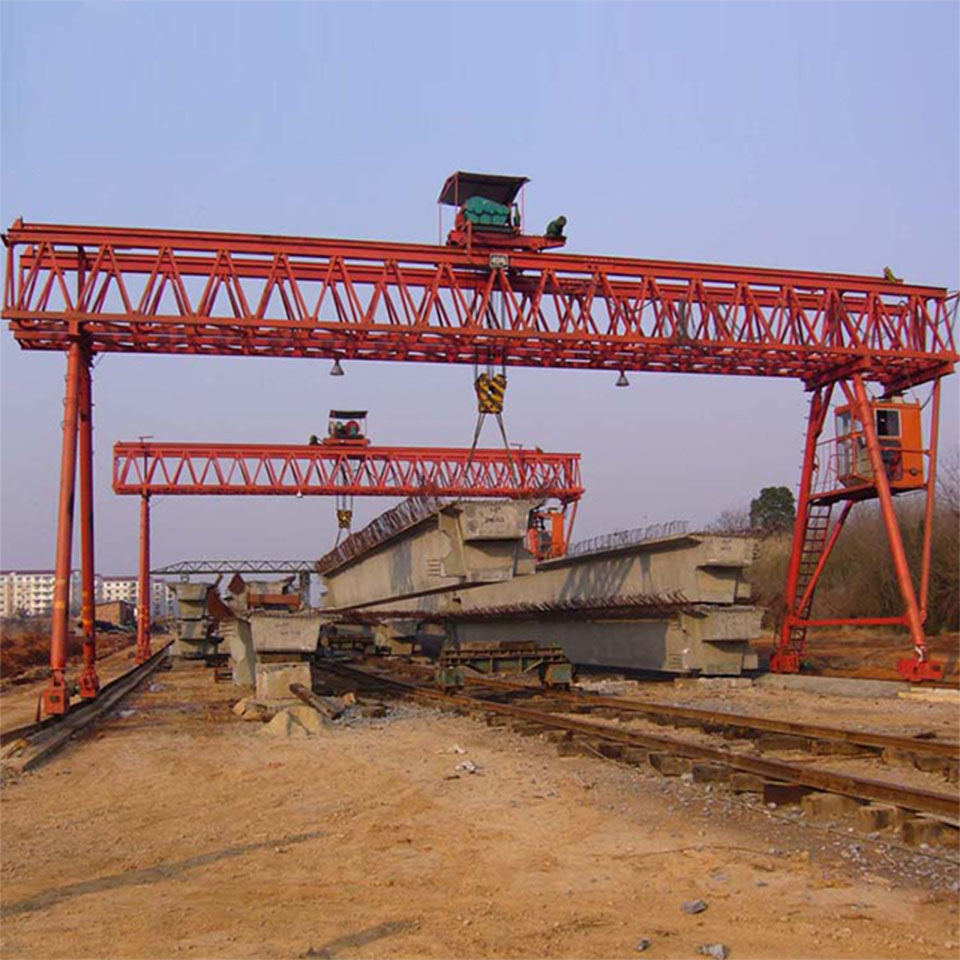

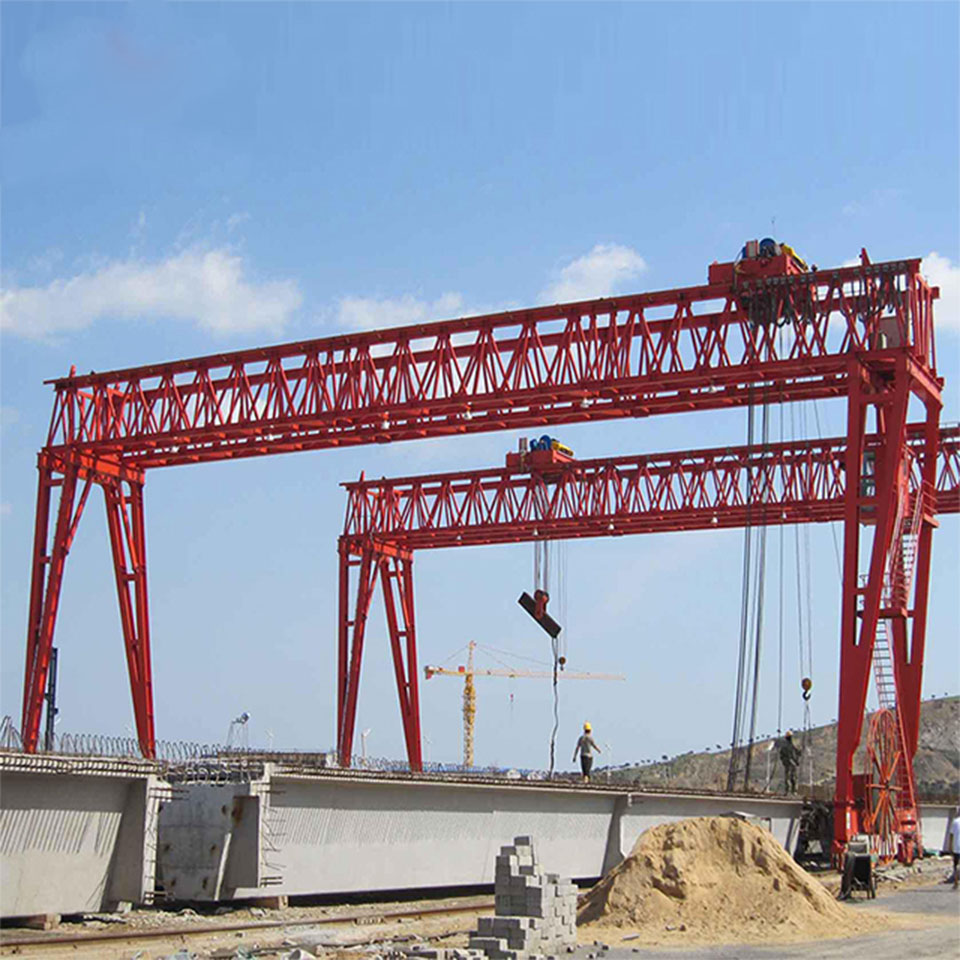

Construction gantry crane, is used to lift, move, load and unload the bridge girder in the precast girder yard for the construction site of the high way, railway, high-speed railway, intercity railway, etc.

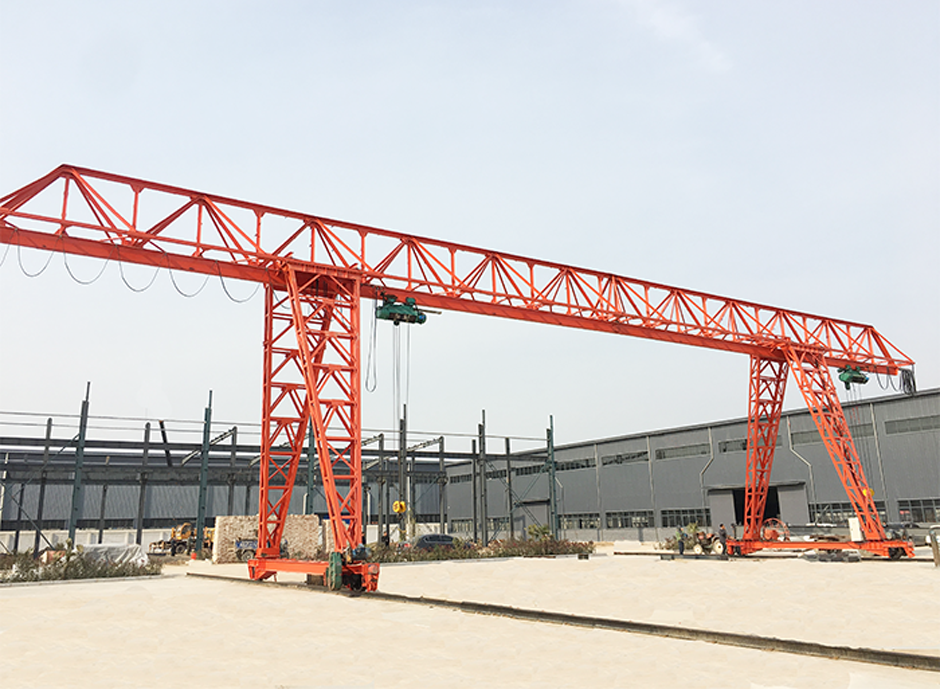

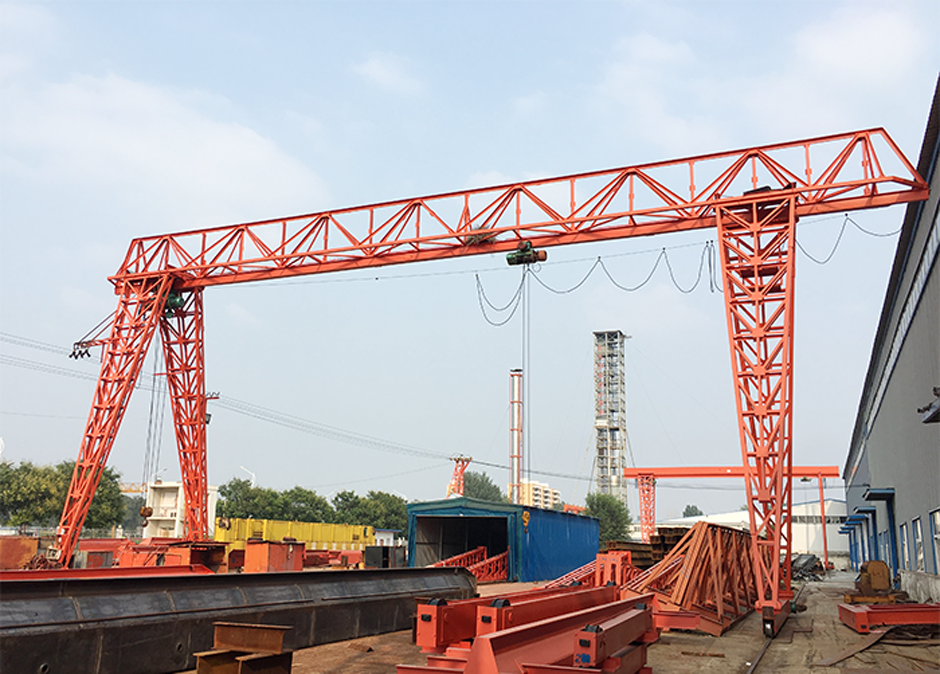

Its cross girders with truss structure. Truss structure has characteristic of small windward surface, small self-weight and strong lifting capacity.

Product Features
1.Steel structure: Q235B/Q345B carbon structural steel with seamless once forming technology, this tech makes it more strong and elegant.  Can be used for different operation temperature.
2. Lifting mechanism system: Reducer, drum, motors protection class F, China or Int’l World top famous brand motor , such as Nanjing motor, SEW, ABM, etc;
3. Hook system: high qty steel forged hook, long using life;
4. Wheels: Vacuum casting, with compact structure, convenient maintenance, well smoothly transmission efficiency and long service life;
5. Travel mechanism system: With China or world top crane electric motor, reducer supplier, such as Nanjing motor, SEW etc;
6. Electrics: Siemens(German) or Schneider(French) etc.

Design and Construction Rules
All the producing standards which are required for the cranes are FEM standard, DIN standard and Chinese National standard.
Europe Main National Standards
--  89/392/EEC standard (93/68/EEC)
--  91/368/EEC standard
--  73/23/CEE standard
--  "EMC" standard 89/336/EEC
--  EN 60204-1
--  EN 292 mechanical safety
--  ISO 2141
--  ISO 2766
International Standards
--  June 9, 1993 / Sept. 22, 1993 notice
--  July 29, 1992, 92-765, 92-766, 92-767 notice
--  DIN 5684
--  DIN 15400; DIN 15401
--  NFE 26-010
--  NFE 26-030
Technical Standards
--  FEM 9.511    Mechanical group
--  FEM 9.661    Hoisting and traveling components size and quality standard
--  FEM 9.671    Wire rope quality standard
--  FEM 9.681    Travel motor choice
--  FEM 9.682    Hoisting motor choice
--  FEM 9.755    Electric hoisting equipment
--  FEM 9.811    Electric crane standard
--  FEM 9.901    Hoisting components design reference
--  IEC 34-1      Traveling and allocation performance
--  IEC 34-5      Protection grade standard
--  IEC 947-5-1   Low voltage equipment
China Main National Standards
Design rules for cranes             GB/T 3811-2008
Safety rules for lifting appliances          GB 6067-2010
Common crane technical condition          GB 7592-87
Crane-Gantry crane for engineering
