Electric Winch

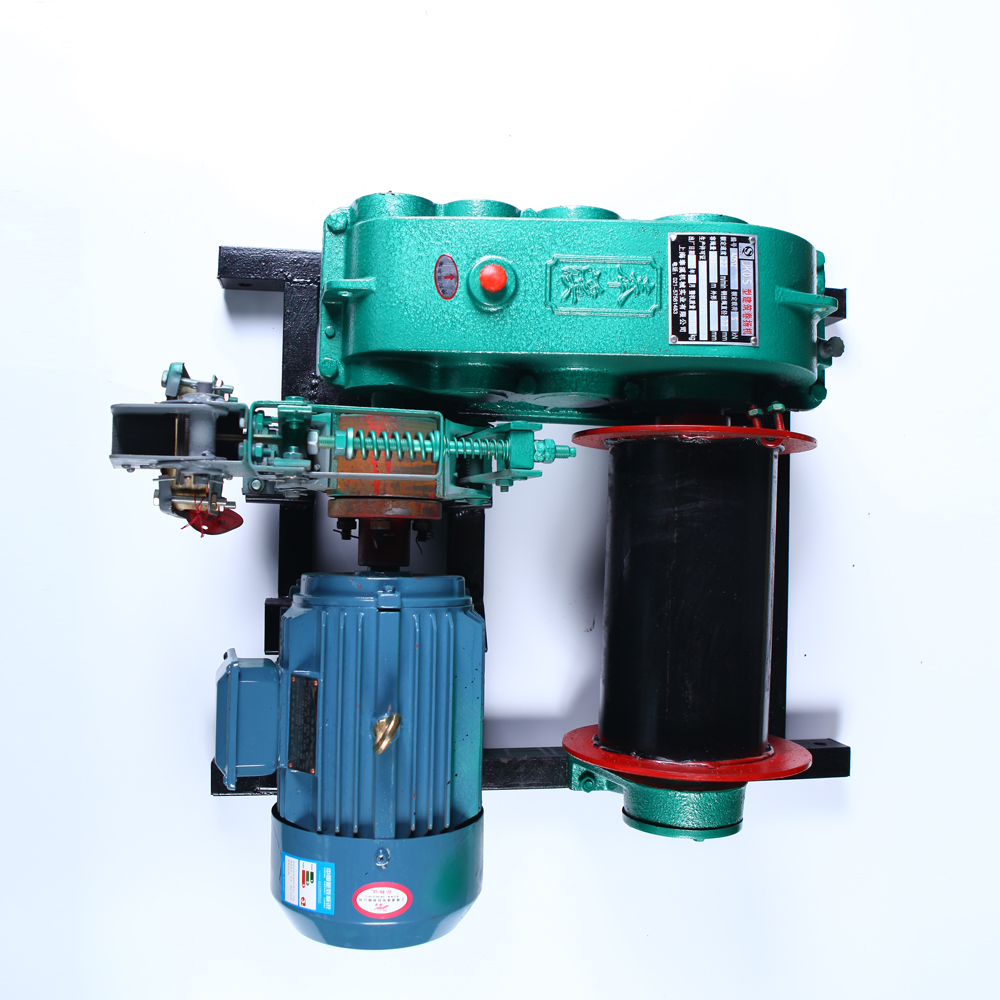

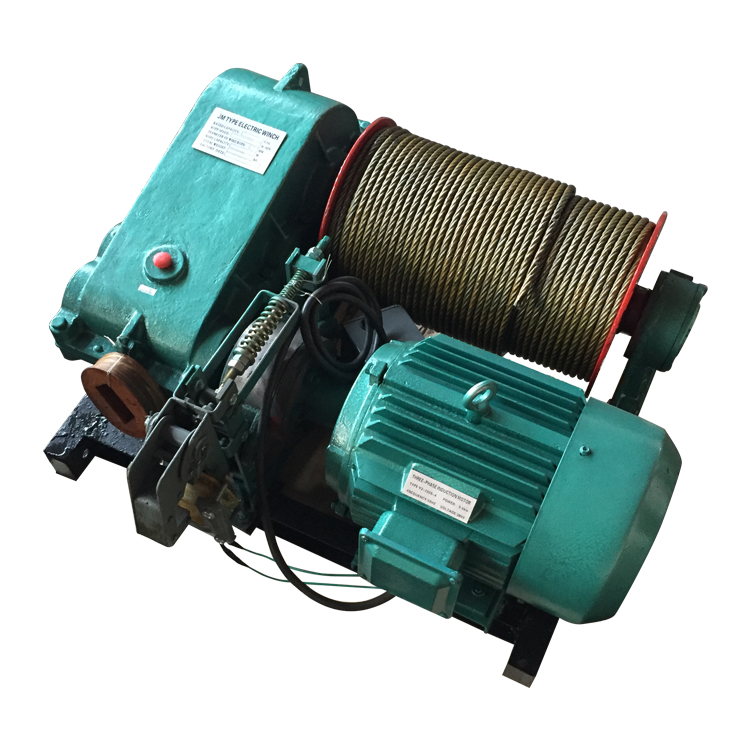

JM Series Electric Winch
Electric winch have great features: such as high flexibility, easy to be operated. This type electric winch can widely been used in the construction site, the engineering site, the forestry, factory, the mine and so on where need hoist and tow or as the equipment of hoisting machinery, it is the most ideal equipment for lifting goods.

Design and Construction Rules
All the standards which are required for the Winch are the FEM standard, DIN standard and Chinese National standard.
Europe Main National Standards
--  89/392/EEC standard (93/68/EEC)
--  91/368/EEC standard
--  73/23/CEE standard
--  "EMC" standard 89/336/EEC
--  EN 60204-1
--  EN 292 mechanical safety
--  ISO 2141
--  ISO 2766
International Standards
--  June 9, 1993 / Sept. 22, 1993 notice
--  July 29, 1992, 92-765, 92-766, 92-767 notice
--  DIN 5684
--  DIN 15400; DIN 15401
--  NFE 26-010
--  NFE 26-030
Technical Standards
--  FEM 9.511    Mechanical group
--  FEM 9.661    Lifting and traveling components size and quality standard
--  FEM 9.671    Wire rope quality standard/Chains quality standard.
--  FEM 9.681    Travel motor choice
--  FEM 9.682    Lifting motor choice
--  FEM 9.755    Electric hoisting equipment
--  FEM 9.811    Electric crane standard
--  FEM 9.901    Lifting components design reference
--  IEC 34-1      Traveling and allocation performance
--  IEC 34-5      Protection grade standard
--  IEC 947-5-1   Low voltage equipment
China Main National Standards
Design rules for cranes             GB/T 3811-2008
Safety rules for lifting appliances          GB 6067-2010
Common crane technical condition          GB 7592-87
Electric Winch-Electric JM winch
