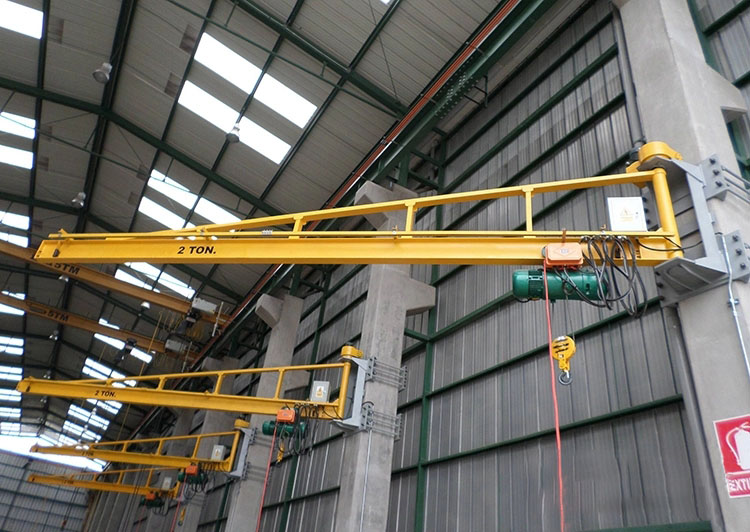

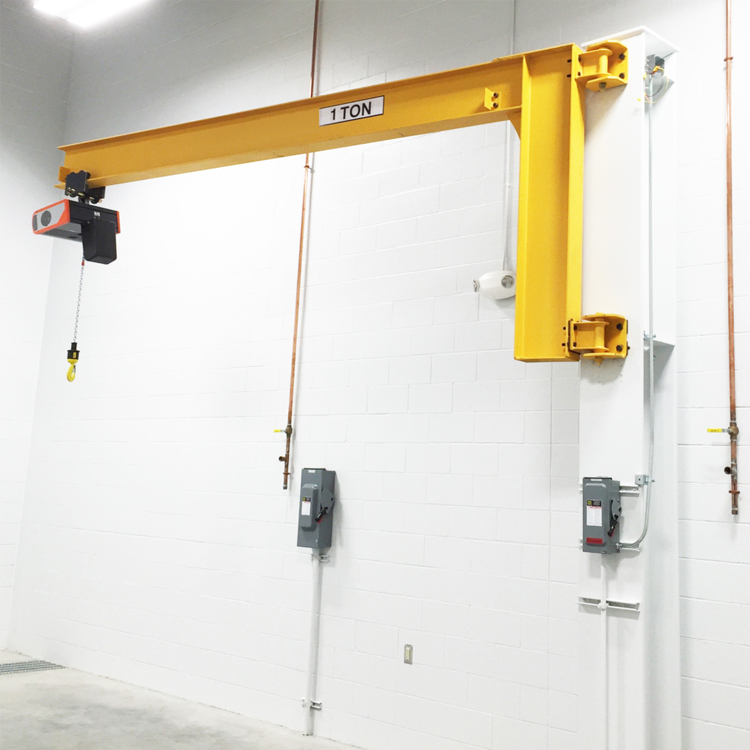

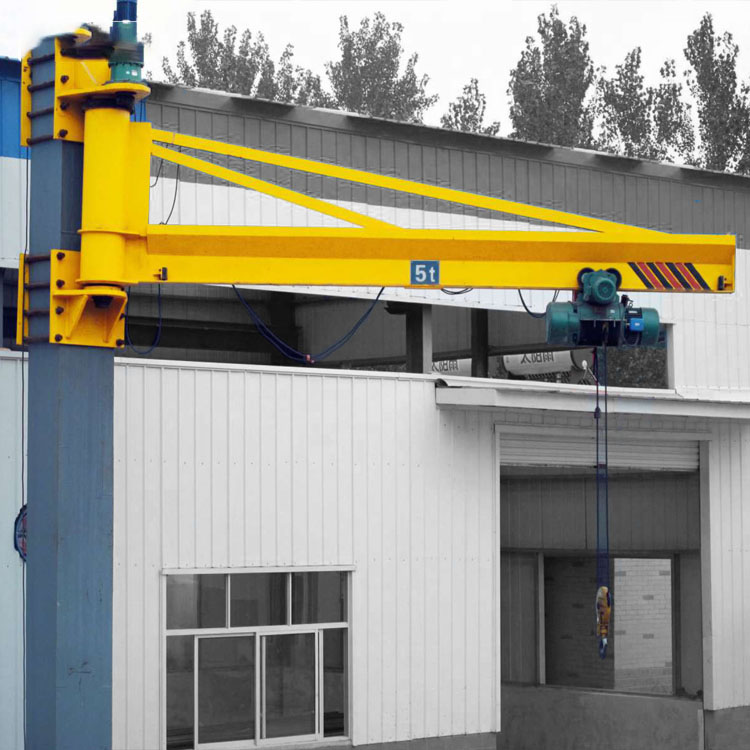

Wall Mounted Jib Crane

This China factory electric hoist wall mounted jib crane works with electric chain hoist or wire rope hoist, with the features of operate easily, smooth travelling, convenient to installation and maintenance. It is widely used on machine tool for loading and unloading materials, working procedures, the lifting work of produce line and other conditions. The slewing type has two types: electrical type and manual type.The range of lifting capacity is from 250kg to 5000kg.
The advantages of this jib crane has many, but the greatest one is that it can be directly installed on the wall, and its steel structure column or on the mechanical equipment, which all don’t need to occupy any ground working space. Electric wall type Jib crane is a kind of lifting tool to do light weight transport in plants, factory, port, wharf and etc. Sometimes it also can be used in assembling line and manufacturing line to do jobs, which need to be fixed position accurately.


Features and Advantages:
1. High strength bolt connection for installation;
2. Operation conveniently,safe and flexible to turn;
3. Good looking and low noise for working;
4. Good quality and low price;
5. Conform to the state standards and simple whole structure, light self-weight;
6. Good design structure doesn't require modification of the building structure around.

Technical parameters
1.Rated Lifting capacity: 0.5~16t.
2. Arm length：3~7m (Can be customized according to your special demands)
3. Lifting Height： No limited (Can be customized according to your real demands)
4. Power Source: 380V, 50HZ, 3 phase or under customer's local industry voltage.
5. Lifting mechanism: Electric chain hoist or wire rope hoists
6. Working Temperature: -25~+40°C
7. Slewing Mechanism: Electric motor type or Manual control type(Two kinds type for optional)
8. Main Material: Q235B Mn Steel
9. Slewing angle：are 90, 180, 270, 360 degree, based on your optional as per your actual requirements
