Electric Chain Hoist

ELK Series Chain Hoist
Working class: B3-B7
Lifting capacity: 250kg ~50000kg (Customized)
Lifting height 3m~600m(Customized)
Colour (Customized)
Many optional functions can be offered according to your requirements. ELK series chain hoist has stationary type, mobile type, manual trolley type and electric trolley type. You can make a choice from different functions chain hoist according to your actual need. After confirmed your using requirement, we will help you to find the suitable lifting solution.

Overview
The lifting capacity of ONLYWE ELK series chain hoist is from 250kg to 50000kg. This type chain hoist has many great features: like that compact structure, modular design and free maintenance and so on. The chain hoist good design helps us to meet customers’ different requirements. ELK series chain hoist can be used in many conditions can be matched with manual or electric trolley, and can be installed on monorail crane, light crane, floor mounted jib crane and overhead crane. The double speed(fast speed and slow speed) electric trolley and electric lifting will offer you more flexible and more efficiency material handling solution. Our ELK chain hoist is the best choice for your light and medium lifting requirement.

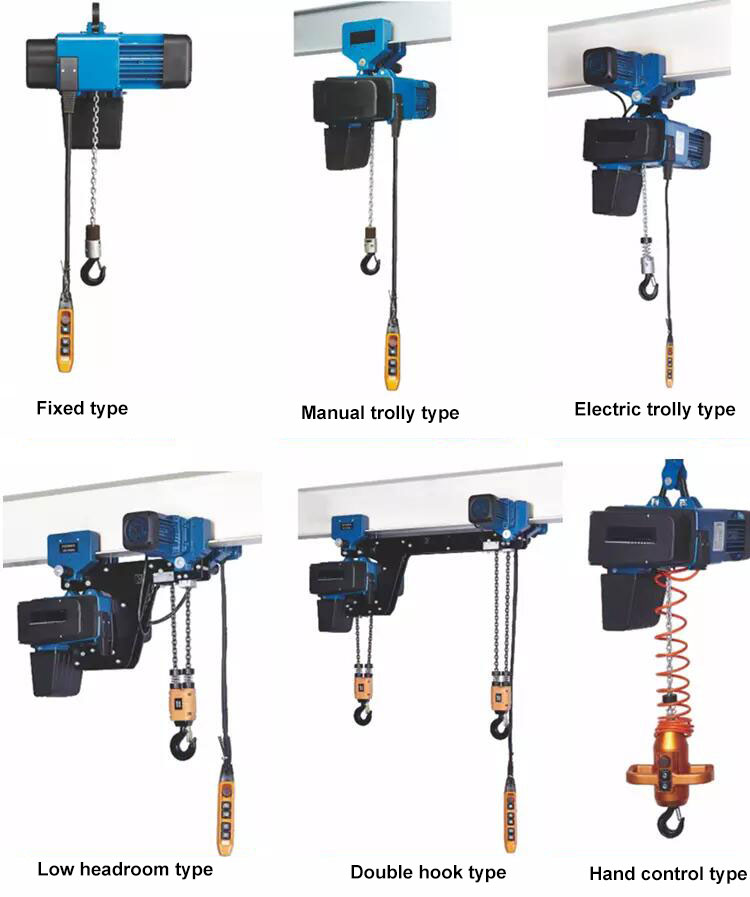

More optional functions can be offered according to your real need. ELK series chain hoist have stationary type, mobile type, electric trolley type and manual trolley type.
You can choose different optional functions according to your real requirement. We will help you to find the best lifting way.
Detailed configuration list

Personalized configuration
ELK Series Chain Hoist
Working class: B3-B7
Lifting capacity: 250kg ~50000kg (Customized)
Lifting height 3m~600m(Customized)

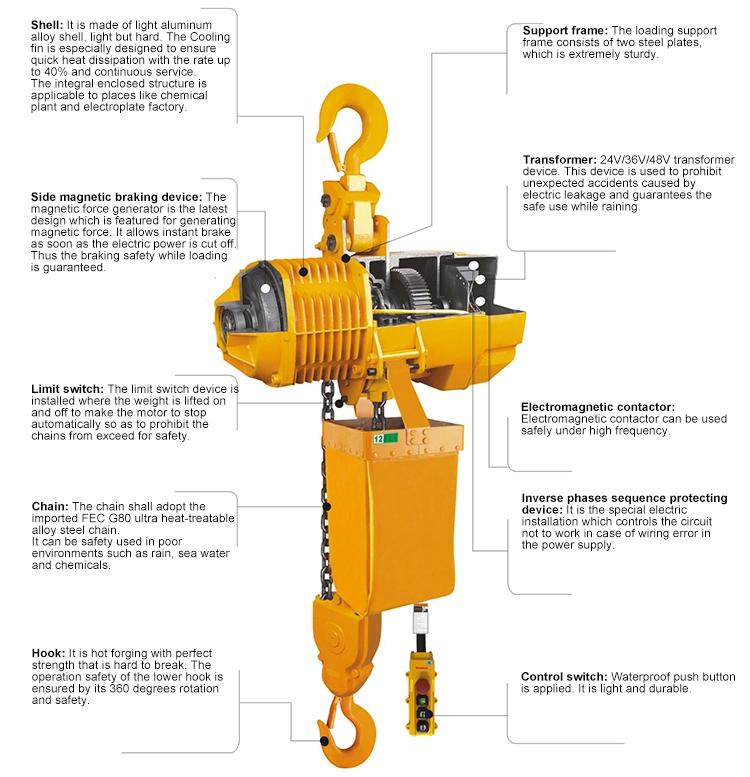

Features:
l Effectively braking, smoothly moving, have long service life.
l High quality and safety hoist spare parts.
l Chain hoist is controlled by frequency conversion Three-In-One mechanism, so can reduce equipment noise.

Design and Construction Rules
All the standards which are required for the Hoist are the FEM standard, DIN standard and Chinese National standard.
Europe Main National Standards
--  89/392/EEC standard (93/68/EEC)
--  91/368/EEC standard
--  73/23/CEE standard
--  "EMC" standard 89/336/EEC
--  EN 60204-1
--  EN 292 mechanical safety
--  ISO 2141
--  ISO 2766
International Standards
--  June 9, 1993 / Sept. 22, 1993 notice
--  July 29, 1992, 92-765, 92-766, 92-767 notice
--  DIN 5684
--  DIN 15400; DIN 15401
--  NFE 26-010
--  NFE 26-030
Technical Standards
--  FEM 9.511    Mechanical group
--  FEM 9.661    Hoisting and traveling components size and quality standard
--  FEM 9.671    Wire rope quality standard/Chains quality standard.
--  FEM 9.681    Travel motor choice
--  FEM 9.682    Hoisting motor choice
--  FEM 9.755    Electric hoisting equipment
--  FEM 9.811    Electric crane standard
--  FEM 9.901    Hoisting components design reference
--  IEC 34-1      Traveling and allocation performance
--  IEC 34-5      Protection grade standard
--  IEC 947-5-1   Low voltage equipment
China Main National Standards
Design rules for cranes             GB/T 3811-2008
Safety rules for lifting appliances          GB 6067-2010
Common crane technical condition          GB 7592-87
Electric Chain Hoist-Electric Wire Rope Hoist
